Laying Indoor / Outdoor XLPE Insulated Power Cable , XLPE Insulated PVC Sheathed Cable

MOQ:	500m
Cena £:	negotiable
standardowe opakowanie:	drewniane żelazne opakowanie bębna (z ochroną)
Okres dostawy:	10-15 dni roboczych po otrzymaniu zaliczki
metoda płatności:	T / T lub LC
Pojemność dostaw:	100 km na miesiąc

Szczegóły Informacje

Opis produktu

Szczegółowe informacje

Miejsce pochodzenia

CHINY

Nazwa handlowa

QINGDAO YICABLE CABLE

Orzecznictwo

CE, RoHS, CCC, KEMA

Nazwa produktu:

XLPE Izolacja elektryczna kabel zasilania

Nominalny obszar dyrygenta:

1,5 mm2 do 1000 mm2

Napięcie testowe:

3,5 kV/ 5 min.

Standard:

IEC 60502-1 IEC 60502-2, IEC 60228

Zastosowanie:

Do leżenia w pomieszczeniach i na zewnątrz

Napęd nominalny:

6/10

Podkreślić:

xlpe electrical cable

cross linked polyethylene cable

Opis produktu

Laying Indoor / Outdoor XLPE Insulated Power Cable , XLPE Insulated PVC Sheathed Cable

Description:

0.6/1kv XLPE Insulated Electric Power cable

CU/XLPE/PVC, IEC 60502

IEC 60502, IEC 60228, GB/T 12706.1-2008.

CE, CCC, KEMA. ISO

Constructions:

Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃
Sheath : PVC type ST2 to IEC 60502, black

Note: Insulation color as per standards or customer requirement

Applications:

For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.

Standards:

International: IEC 60502, IEC 60228

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request

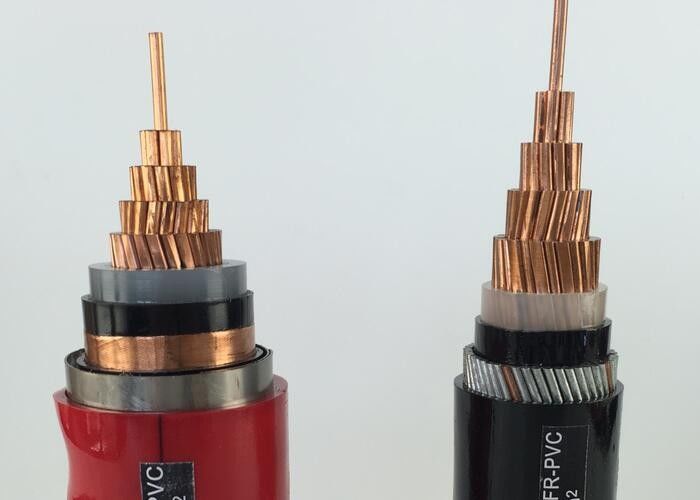

Laying Indoor / Outdoor XLPE Insulated Power Cable , XLPE Insulated PVC Sheathed Cable 0

Technical data:

Rated voltage: 0.6/1kV

Max. Conductor Temp.: normal (90℃), short circuit no more than 5 s (160℃ when section-area

below 300mm², 140℃ when section-area above 300mm²)

Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0℃

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%

Certificates:

CE, RoHS, CCC, KEMA and more others at request

Technical Specifications:

Nom. Cross-section of conductor	Strands No./Dia. of Conductor	Insulation Thickness	Sheath Thickness	Approx. O.D.	Approx .Weight	Max. D.C Resistance of Conductor (20 ℃)	Testing Voltage A.C	Current Rating
mm²	pc/mm	mm	mm	Lower Limit (mm)	kg/km	Ω /km	kV/5min	In air (A)	Direct In soil(A)
1 × 1.5	1/1.38	0.7	1.5	6	53	12.1	3.5	26	33
1 × 2.5	1/1.78	0.7	1.5	6	68	7.41	3.5	34	43
1 × 4	1/2.25	0.7	1.5	7	87	4.61	3.5	44	56
1 × 6	1/2.76	0.7	1.5	7	110	3.08	3.5	56	70
1 × 10	7/1.38	0.7	1.5	8	155	1.83	3.5	77	94
1 × 16	7/1.78	0.7	1.5	9	220	1.15	3.5	100	120
1 × 25	7/2.14	0.9	1.5	10.0	345	0.727	3.5	130	155
1 × 35	7/2.52	0.9	1.5	12.0	424	0.524	3.5	160	185
1 × 50	10/2.52	1.0	1.5	13.0	555	0.387	3.5	195	220
1 × 70	14/2.52	1.1	1.5	14.0	770	0.268	3.5	245	270
1 × 95	19/2.52	1.1	1.5	16.0	1040	0.193	3.5	300	320
1 × 120	24/2.52	1.2	1.5	18.0	1290	0.153	3.5	350	365
1 × 150	30/2.52	1.4	2.0	20.0	1590	0.124	3.5	400	410
1 × 185	37/2.52	1.6	2.0	22.0	1944	0.0991	3.5	465	465
1 × 240	48/2.52	1.7	2.0	25.0	2510	0.0754	3.5	550	540
1 × 300	61/2.52	1.8	2.0	27.0	3042	0.0601	3.5	635	610
1 × 400	61/2.97	2.0	2.1	31.0	3869	0.0470	3.5	745	695
1 × 500	61/3.23	2.2	2.2	35.0	4910	0.0366	3.5	860	780
1 × 630	61/3.50	2.4	2.3	40.0	6220	0.0283	3.5	990	880
1 × 800	91/3.20	2.6	2.4	45.0	7870	0.0221	3.5	1120	970
1 × 1000	91/3.75	2.8	2.6	51.0	9804	0.0176	3.5	1260	1060
2 × 2.5	1/1.78	0.7	1.4	11.8	151	7.41	3.5	26	35
2 × 4	1/2.25	0.7	1.8	12.7	198	4.61	3.5	34	45
2 × 6	1/2.76	0.7	1.8	13.7	250	3.08	3.5	43	57
2 × 10	7/1.38	0.7	1.8	15.0	374	1.83	3.5	60	77
2 × 16	7/1.78	0.7	1.8	17.0	518	1.15	3.5	83	105
2 × 25	7/2.14	0.9	1.8	20.0	772	0.727	3.5	105	125
2 × 35	7/2.52	0.9	1.8	22.0	1006	0.524	3.5	125	155
2 × 50	10/2.52	1.0	1.8	20.0	1365	0.387	3.5	160	185
2 × 70	14/2.52	1.1	1.8	21.0	1872	0.268	3.5	200	225
2 × 95	19/2.52	1.1	1.8	24.0	2475	0.193	3.5	245	270
2 × 120	24/2.52	1.2	1.8	27.0	3089	0.153	3.5	285	310
2 × 150	30/2.52	1.4	1.9	30.0	3834	0.124	3.5	325	345
3 × 1.5	1/1.38	0.7	1.4	10.0	145	12.1	3.5	20	27
3 × 2.5	1/1.78	0.7	1.8	11.0	185	7.41	3.5	26	35
3 × 4	1/2.25	0.7	1.8	12.0	250	4.61	3.5	34	45
3 × 6	1/2.76	0.7	1.8	13.0	320	3.08	3.5	43	57
3 × 10	7/1.38	0.7	1.8	16.0	450	1.83	3.5	60	77
3 × 16	7/1.78	0.7	1.8	18.0	640	1.15	3.5	83	105
3 × 25	7/2.14	0.9	1.8	21.0	940	0.727	3.5	105	125
3 × 35	7/2.52	0.9	1.8	23.0	1260	0.524	3.5	125	155
3 × 50	10/2.52	1.0	1.8	23.0	1670	0.387	3.5	160	185
3 × 70	14/2.52	1.1	1.8	26.0	2280	0.268	3.5	200	225
3 × 95	19/2.52	1.1	1.9	30.0	3020	0.193	3.5	245	270
3 × 120	24/2.52	1.2	2.0	32.0	3790	0.153	3.5	285	310
3 × 150	30/2.52	1.4	2.2	37.0	4750	0.124	3.5	325	345
3 × 185	37/2.52	1.6	2.3	41.0	5654	0.0991	3.5	375	390
3 × 240	48/2.52	1.7	2.4	46.0	7243	0.0754	3.5	440	450
3 × 300	61/2.52	1.8	2.6	51.0	9465	0.0601	3.5	505	515
3 × 400	61/2.97	2.0	3.0	64.0	12066	0.0470	3.5	570	575
4 × 4	1/2.25	0.7	1.8	13.0	253	4.61	3.5	34	45
4 × 6	1/2.76	0.7	1.8	14.0	337	3.08	3.5	43	57
4 × 10	7/1.38	0.7	1.8	17.0	501	1.83	3.5	60	77
4 × 16	7/1.78	0.7	1.8	20.0	778	1.15	3.5	83	105
4 × 25	7/2.14	0.9	1.8	23.0	1160	0.727	3.5	105	125
4 × 35	7/2.52	0.9	1.8	25	1554	0.524	3.5	125	155
4 × 50	10/2.52	1.0	1.8	23	2148	0.387	3.5	160	185
4 × 70	14/2.52	1.1	1.8	27	2928	0.268	3.5	200	225
4 × 95	19/2.52	1.1	1.9	31	3854	0.193	3.5	245	270
4 × 120	24/2.52	1.2	2.0	33	4925	0.153	3.5	285	310
4 × 150	30/2.52	1.4	2.2	38	6238	0.124	3.5	325	345
4 × 185	37/2.52	1.6	2.3	42	7562	0.0991	3.5	375	390
4 × 240	48/2.52	1.7	2.5	47	9836	0.0754	3.5	440	450
4 × 300	61/2.52	1.8	2.6	52	12550	0.0601	3.5	505	515
4 × 400	61/2.97	2.0	3.1	66	15929	0.0470	3.5	570	575
5 × 4	1/2.25	0.7	1.8	14.5	349	4.61	3.5	34	45
5 × 6	1/2.76	0.7	1.8	15.8	460	3.08	3.5	43	57
5× 10	7/1.38	0.7	1.8	19.0	699	1.83	3.5	60	77
5 × 16	7/1.78	0.7	1.8	22.0	1013	1.15	3.5	83	105
5 × 25	7/2.14	0.9	1.8	25.0	1566	0.727	3.5	105	125
5 × 35	7/2.52	0.9	1.9	28.0	2083	0.524	3.5	125	155
5× 50	10/2.52	1.0	2.0	31.0	2921	0.387	3.5	160	185
5× 70	14/2.52	1.1	2.1	36.0	3974	0.268	3.5	200	225
5× 95	19/2.52	1.1	2.2	39.0	5297	0.193	3.5	245	270
5 × 120	24/2.52	1.2	2.4	44.0	6638	0.153	3.5	285	310
5 × 150	30/2.52	1.4	2.5	49.0	8290	0.124	3.5	325	345
5 × 185	37/2.52	1.6	2.7	55.0	10215	0.0991	3.5	375	390
5 × 240	48/2.52	1.7	3.0	64.0	13130	0.0754	3.5	440	450
5 × 300	61/2.52	1.8	3.2	70.0	16670	0.0601	3.5	505	515
3 × 4+ 1 × 2.5	1/2.25+1/1.38	0.7	1.8	13	236	4.61	3.5	34	45
3 × 6+ 1 × 4	1/2.76+1/2.25	0.7	1.8	14	316	3.08	3.5	43	57
3 × 10+ 1 × 6	7/1.38+1/2.8	0.7	1.8	17	461	1.83	3.5	60	77
3 × 16+ 1 × 10	7/1.78+7/1.38	0.7	1.8	19	679	1.15	3.5	83	105
3 × 25+ 1 × 16	7/2.14+7/1.78	0.9	1.8	22	1065	0.727	3.5	105	125
3 × 35+ 1 × 16	7/2.52+7/1.78	0.9	1.8	24	1360	0.524	3.5	125	155
3 × 50+ 1 × 25	10/2.52+7/2.14	1.0	1.8	25	1901	0.387	3.5	160	185
3 × 70+ 1 × 35	14/2.52+7/2.52	1.1	1.9	28	2585	0.268	3.5	200	225
3 × 95+ 1 × 50	19/2.52+10/2.52	1.1	2.0	32	3518	0.193	3.5	245	270
3 × 120+ 1 × 70	24/2.52+14/2.52	1.2	2.1	35	4443	0.153	3.5	285	310
3 × 150+ 1 × 70	30/2.52+14/2.52	1.4	2.2	40	5326	0.124	3.5	325	345
3 × 185+ 1 × 95	37/2.52+19/2.52	1.6	2.4	43	6682	0.0991	3.5	375	390
3 × 240+ 1 × 120	48/2.52+24/2.52	1.7	2.5	48	8501	0.0754	3.5	440	450
3 × 300+ 1 × 150	61/2.52+30/2.52	1.8	2.7	54	11155	0.0601	3.5	505	515
3 × 4+ 2 × 2.5	1/2.25+1/1.38	0.7	1.8	13.9	309	4.61	3.5	34	45
3 × 6+ 2 × 4	1/2.76+1/2.25	0.7	1.8	15.3	413	3.08	3.5	43	57
3 × 10+ 2 × 6	7/1.38+1/2.8	0.7	1.8	17.7	603	1.83	3.5	60	77
3 × 16+ 2 × 10	7/1.78+7/1.38	0.7	1.8	20.7	888	1.15	3.5	83	105
3 × 25+ 2 × 16	7/2.14+7/1.78	0.9	1.8	24.0	1342	0.727	3.5	105	125
3 × 35+ 2 × 16	7/2.52+7/1.78	0.9	1.8	25.7	1647	0.524	3.5	125	155
3 × 50+ 2 × 25	10/2.52+7/2.14	1.0	1.9	28.8	2386	0.387	3.5	160	185
3 × 70+ 2 × 35	14/2.52+7/2.52	1.1	2.0	32.4	3201	0.268	3.5	200	225
3 × 95+ 2 × 50	19/2.52+10/2.52	1.1	2.1	35.6	4269	0.193	3.5	245	270
3 × 120+ 2 × 70	24/2.52+14/2.52	1.2	2.3	41.1	5437	0.153	3.5	285	310
3 × 150+ 2 × 70	30/2.52+14/2.52	1.4	2.4	43.6	6519	0.124	3.5	325	345
3 × 185+ 2 × 95	37/2.52+19/2.52	1.6	2.5	49.1	8101	0.0991	3.5	375	390
3 × 240+ 2 × 120	48/2.52+24/2.52	1.7	2.7	54.2	10340	0.0754	3.5	440	450
3 × 300+ 2 × 150	61/2.52+30/2.52	1.8	2.8	55.6	12810	0.0601	3.5	505	515
4 × 10+ 1 × 6	7/1.38+1/2.8	0.7	1.8	18.3	649	1.83	3.5	60	77
4 × 16+ 1 × 10	7/1.78+7/1.38	0.7	1.8	21.1	965	1.15	3.5	83	105
4 × 25+ 1 × 16	7/2.14+7/1.78	0.9	1.8	24..5	1456	0.727	3.5	105	125
4 × 35+ 1 × 16	7/2.52+7/1.78	0.9	1.8	26.9	1863	0.524	3.5	125	155
4 × 50+ 1 × 25	10/2.52+7/2.14	1.0	1.9	28.8	2633	0.387	3.5	160	185
4 × 70+ 1 × 35	14/2.52+7/2.52	1.1	2.0	32.4	3565	0.268	3.5	200	225
4 × 95+ 1 × 50	19/2.52+10/2.52	1.1	2.1	35.6	4735	0.193	3.5	245	270
4 × 120+ 1 × 70	24/2.52+14/2.52	1.2	2.3	41.1	5977	0.153	3.5	285	310
4 × 150+ 1 × 70	30/2.52+14/2.52	1.4	2.4	43.6	7276	0.124	3.5	325	345
4 × 185+ 1 × 95	37/2.52+19/2.52	1.6	2.5	49.1	9055	0.0991	3.5	375	390
4 × 240+ 1 × 120	48/2.52+24/2.52	1.7	2.7	54.2	11567	0.0754	3.5	440	450
4 × 300+ 1 × 150	61/2.52+30/2.52	1.8	3.1	66.3	14321	0.0601	3.5	505	515
