600/1000V Copper Conductor XLPE Insulated Power cable Electrical cable

MOQ: 200m
Cena £: USD 1.23-96.8 per meter
standardowe opakowanie: Bęben żelazno-drewniany
Okres dostawy: 7 dni
metoda płatności: L/C, T/T, Western Union, MoneyGram
Szczegóły Informacje
Opis produktu
Szczegółowe informacje
Miejsce pochodzenia
CHINY
Nazwa handlowa
QINGDAO YICABLE CABLE
Orzecznictwo
CE,KEMA, IEC
kolor izolacji:
Naturalny kolor lub personalizacja
Rdzeń:
1.2.3.4.5
Znak kablowy:
Druk atramentowy lub tłoczenie
Znak podstawowy:
atrament z numerem lub kolorem paska
Konduktor:
Czysta miedź
Kolor powłoki zewnętrznej:
Czarny lub dostosowanie
Podkreślić:

xlpe electrical cable

,

xlpe power cable

Opis produktu

600/1000V Copper Conductor XLPE Insulated Power cable Electrical cable





Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation : XLPE(cross-linked polyethylene) rated at 90 OC
Outer sheath : PVC





CODE Designation:



YJ: XLPE insulation

V: PVC sheath



Applications:



Suitable for use in power distribution lines with rated voltage 0.6/1 KV. These cables have a low dielectric loss, used in indoors, in cable ducts, underground, in power or switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.



Standards:



International: IEC 60502-1, IEC 60228

China: GB/T 12706.1-2008

Germany: VDE 0276

Britain: BS 7889





Technical data: Rated voltage:0.6/1kV Low Voltage

Maximum Conductor Temperature: under normal (90℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single core without armor

15 x cable O.D for multi core without armor

15 x cable O.D for single core with armor

12 x cable O.D for multi core with armor

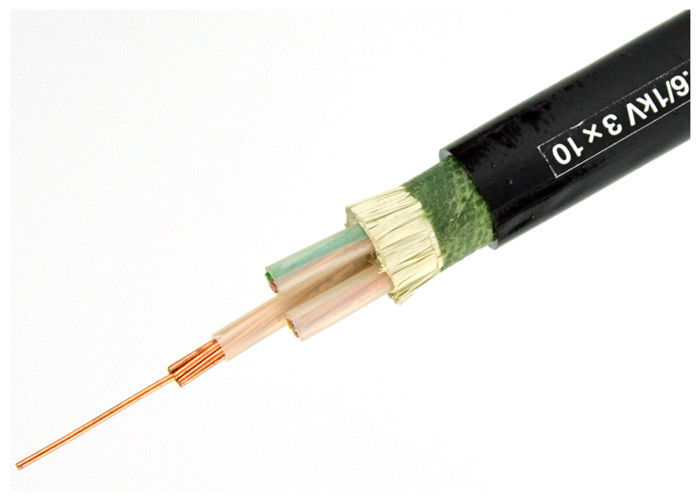

Construction:

  1. Solid or Stranded copper conductor
  2. XLPE insulation
  3. Filler
  4. PVC outer sheath

Ordering Advice



Rated Voltage

Application Standard: IEC/BS/UL/GB

Number of Cores

Conductor Size & Construction

Type of Insulation

Armored or unarmored. If armor, the armor type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement



Certificates:



CE, RoHS, CCC, KEMA and more others at request





Brief technical Specification:



Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Inner Sheath Thickness Dia. Of Armor Wire Sheath Thickness Approx. O.D. Approx. Weight
mm2 pc/mm mm mm mm mm (mm) kg/km
1 × 25 7/2.14 2.5 1.2 1.6 1.8 24.0 1396
1 × 35 7/2.52 2.5 1.2 1.6 1.8 25.0 1550
1 × 50 10/2.52 2.5 1.2 1.6 1.8 26.0 1754
1 × 70 14/2.52 2.5 1.2 1.6 1.9 28.0 2054
1 × 95 19/2.52 2.5 1.2 1.6 1.9 29.0 2367
1 × 120 24/2.52 2.5 1.2 1.6 2.0 31.0 2701
1 × 150 30/2.52 2.5 1.2 2.0 2.0 33.0 3301
1 × 185 37/2.52 2.5 1.2 2.0 2.1 35.0 3756
1 × 240 48/2.52 2.6 1.2 2.0 2.2 38.0 4458
1 × 300 61/2.52 2.8 1.2 2.0 2.3 40.0 5223
1 × 400 61/2.97 3.0 1.3 2.5 2.4 45.0 6804
1 × 500 61/3.23 3.2 1.3 2.5 2.5 50.0 8094
