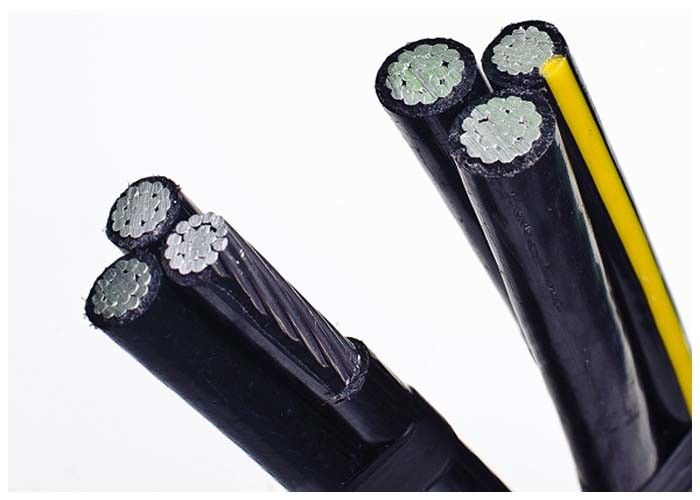

Al / Xlpe Insulated Aerial Bunched Aerial Power Cable AAC Conductor

MOQ: 500 mln
Cena £: 0.19-10.99USD/m
standardowe opakowanie: Bęben drewniany / stalowy
Okres dostawy: 15 dni
metoda płatności: L/C, D/A, D/P, T/T
Szczegóły Informacje
Opis produktu
Szczegółowe informacje
Miejsce pochodzenia
CHINY
Nazwa handlowa
QINGDAO YICABLE CABLE
Orzecznictwo
TS 11654 AER
Dyrygent fazy:
Aluminiowe
Izolacja:
PE lub PVC
Napięcie znamionowe:
0,6 / 1KV
aplikacji:
Napowietrzne linie elektroenergetyczne
Przewód neutralny:
Stopu aluminium
Cors No.:
2,3,4,5,6
Podkreślić:

xlpe electrical cable

,

xlpe power cable

Opis produktu

Description:3 Phase conductors + 1 Messenger conductor + 1 Street lighting conductor







The aerial Bundled cables designed for overhead distribution lines have an insulated neutral messenger made of AAAC, which the insulated aluminium phase conductor are helically wound over it. Cables are rated at 0.6/1(1.2)kV and conform to IEC60502.



Construction



  1. Conductor:



a)Phase - The phase conductor shall be of H68 Condition aluminium conductor and compacted circular stranded.



b)Neutral or messenger - The Neutral or messenger conductor shall be of aluminium alloy conductor and compacted circular stranded c)Street Lighting- The street lighting conductors shall be of H68 condition aluminium conductor and compacted circular stranded..



  1. Insulation:



The phase, neutral conductors shall be extruded with polyethylene(PE) as insulation.



STANDARD TS 11654



AER



            Insulated Wires       Porter   Completed cable
    Number of   Main Distribution Line   Str. Lighting

    Conductor Cross Number Number of Diameter of Resistance Current Number Current Diameter of Min. Tensile Resistance Approx. Approximate
    Section &Cross- wire Wires   at 20℃ Carrying &Cross- Carrying Neutral/Mes Strenght at 20℃ Average weight
      section         Capacity at section Capacity at senger Wire Limite   Diameter
                30℃   30℃
    mm² mm² PCS mm   ohm/km A mm² A mm kN ohm/km mm kg/km
  1x16+25 1x16 1 4.4 1.91 75 - - 5.9 7.4 1.380 15 140
1x25+35 1x25 7 5.9 1.20 100 - - 6.9 10.3 0.986 17 200
  1x35+50 1x35 7 6.9 0.868 125 - - 8.1 14.2 0.720 20 275
  3x16+25 3x16 7 4.4 1.91 70 - - 5.9 7.4 1.380 22 275
3x25+35 3x25 7 5.9 1.20 90 - - 6.9 10.3 0.986 26 400
3x35+50 3x35 7 6.9 0.868 115 - - 8.1 14.2 0.720 30 575

  3x50+70 3x50 7 8.1 0.641 140 - - 9.6 20.6 0.493 35 750
  3x70+95 3x70 7 9.6 0.443 180 - - 11.4 27.9 0.363 41 1050
    3x120+95 3x120 19 12.8 0.253 250 - - 11.4 27.9 0.363 47 1550
4x16+25 4x16 1 4.4 1.91 70 - - 5.9 7.4 1.380 24 375
    4x25+35 4x25 7 5.9 0.868 90 - - 6.9 10.3 0.986 28 550
  4x35+50 4x35 7 6.9 0.868 115 - - 8.1 14.2 0.720 32 750
    4x50+70 4x50 7 8.1 0.641 140 - - 9.6 20.6 0.493 38 1000
4x70+95 4x70 7 9.6 0.443 180 - - 11.4 27.9 0.363 45 1350

  1x16+25 - - - - - 1x16 75 5.9 7.4 1.380 14 140
  1x16+1x16+25 1x16 1 4.4 1.91 70 1x16 60 5.9 7.4 1.380 15 225

3x16+1x16+25 3x16 1 4.4 1.91 60 1x16 60 5.9 7.4 1.380 22 350
3x25+1x16+35 3x25 7 5.9 1.20 80 1x16 60 6.9 10.3 0.986 26 475
    3x35+1x16+35 3x35 7 6.9 0.868 95 1x16 60 8.1 14.2 0.720 30 625
  3x50+1x16+70 3x50 7 8.1 0.641 120 1x16 60 9.6 20.6 0.493 35 800
    3x70+1x16+95 3x70 7 9.6 0.443 150 1x16 60 11.4 27.9 0.363 41 1100
4x16+1x16+25 4x16 1 4.4 1.91 60 1x16 60 5.9 7.4 1.380 25 450
    4x25+1x16+35 4x25 7 5.9 1.20 80 1x16 60 6.9 10.3 0.986 30 610
  4x35+1x16+50 4x35 7 6.9 0.868 95 1x16 60 8.1 14.2 0.720 34 800
    4x50+1x16+70 4x50 7 8.1 0.641 120 1x16 60 9.6 20.6 0.493 40 1060
4x70+1x16+95 4x70 7 9.6 0.443 180 1x16 60 11.4 27.9 0.363 47 1420

Al / Xlpe Insulated Aerial Bunched Aerial Power Cable AAC Conductor 0




Al / Xlpe Insulated Aerial Bunched Aerial Power Cable AAC Conductor 1
