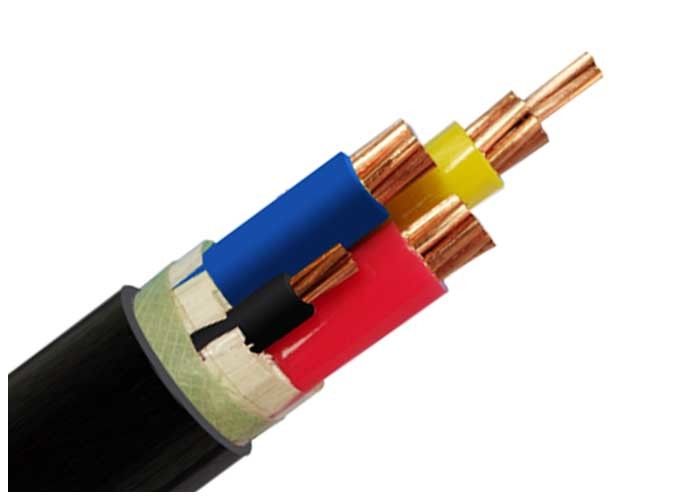

CU Conductor XLPE Insulated Power Cable 4 Core IEC60502 BS7870 Standard

MOQ: 1000 metrów
Cena £: $0.29/M ~ $120/M
standardowe opakowanie: Drewniane Bębny
Okres dostawy: 7 ~ 15 dni
metoda płatności: T/T, L/C
Pojemność dostaw: 20 000 kilometrów na miesiąc
Szczegóły Informacje
Opis produktu
Szczegółowe informacje
Miejsce pochodzenia
CHINY
Nazwa handlowa
QINGDAO YICABLE CABLE
Orzecznictwo
ISO,CE,IEC,TUV,KEMA
Nazwa produktu:
Izolowany kabel zasilający XLPE
Izolacja:
XLPE
Konduktor:
CU
Rozmiary:
1,0 do 630 mm2
Rdzenie:
3 + 1
Osłona:
PVC
Darmowe próbki:
Tak
Podkreślić:

xlpe electrical cable

,

cross linked polyethylene cable

Opis produktu

CU Conductor XLPE Insulated Power Cable 4 Core IEC60502 BS7870 Standard



Cable details



1. U0/U: 0.6/1kV



2. Standard: IEC60502, BS7870, GB/T12706



3. Max. working temperature: 90 °C , can be 110 °C as requirement



4. Conductor: Class 1/2 annealed bare copper/aluminum solid or strands



5. Insulation: XLPE/PVC



6. Armored: none



7. Sheath: PVC



8. Cross section area: 1.5~630mm2



9. Cores: 1~5 cores,3C+1E,4C+1E,3C+2E



10. Packing:Wooden drum or as requirement



11. Certification : ISO9001/ISO14001/OHSAS18001/CCC/CE/CB



12. Remark: Flame retardant,fire resistance,low smoking and Halogen free,or other property can be avaliable



Applications



Electric Cable YJV 3+1 Core Cable applies to electrical power transmission and distribution lines with AC rated voltage Uo/ U up to and including 0.6/1kV.

For outdoor and indoor installation in damp and wet locations,laid directly in the ground where excessive mechanical stresses are present in sloping and moving terrains and in vertical or inclined laying,as well as in locations susceptible to sliding.



YJ: XLPE insulation

V: PVC insulation

V: PVC sheath



Standards



International: IEC 60502, IEC 60228, IEC 60332

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request

font-size:10.0000pt;mso-font-kerning:0.0000pt;" >PVC type ST2 to IEC 60502, black





Technical data



Rated voltage: 0.6 / 1 kV

Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 12 x cable O.D





Specifications



Type

Desciption

Rated Voltage

NO. of Cores

Nomibal section(mm2)

Applications

YJV YJLV

Cu or Al conductor,XLPE insulated.PVC sheathed electric cable

0.6/1KV

1,2,3,4

1.5 to 400

For laying indoors and outdoors.The LV XLPE insulated power cable is used in transmission and distribution system at rated voltagae U(Um) ≤10KV.The HV XLPE insulated power cable refers to the power cable transmission between 10KV-35KV, it is often applied to the main road of power transmission. Able to bear certain traction during installation, but not external mechanical forces.

3+1

3×4+1×2.5 to 3×400+1×185

6/6kV

1,3

25 to 500

8.7/10kV 8.7/15kV 12/20kV

1

25 to 500

3

25 to 300

21/35kv

1

50 to 500















pvc insulation

Cu Core

Al Core

VV(VY);PVC(PE)sheathed power cable

VLV(VLY);PVC(PE)sheathed power cable

VV22(VV23);steel tape armoured,PVC(PE)sheathed power cable

VLV22(VLV23);steel tape armoured,PVC(PE)sheathed power cable

VV32(VV33),VV42(VV43);steel wire armoured ,PVC(PE)sheathed power cable

VLV32(VLV33),VLV42(VLV43);steel wire armoured ,PVC(PE)sheathed power cable





Packing & Shipping



All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum.

The packing material is depended on the weight and size of cable.

The good information, manufacture information, and the client's information is firmly printed on each size of drum.



After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight.

The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.



Our Services

♦ We are the one of biggest manufacture of electric wire and power cable in southwest of China and has more than 20 years producing and marketing experience.

♦ We accept OEM. The cable size and material are customized.Ur own logo and

own design are welcome. We will produce according to your requirement and description;

♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.





FAQ
1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc
2. Payment: We accept T/T, L/C , just choose what you like
3. Delivery time: Generally 7~10 working days upon receipt deposit. According to the quantity.
4. MOQ: Generally our MOQ is 1000meters. samples below 20 centimeter can be provided freely.
