Four Core XLPE Insulated Power Cable Copper Tape Shield Electric Insulation Cable

MOQ: 500 M
Cena £: US$ 0.5~56 / meter
standardowe opakowanie: Beczki drewniane
Okres dostawy: tydzień lub 10 dni
metoda płatności: L/C, T/T
Pojemność dostaw: 5000 Kilometrów na tydzień
Szczegóły Informacje
Opis produktu
Szczegółowe informacje
Miejsce pochodzenia
CHINY
Nazwa handlowa
QINGDAO YICABLE CABLE
Orzecznictwo
ISO,CE,IEC,KEMA
Typ modelu:
Przewód miedziany, izolowany XLPE, osłona zewnętrzna z PVC
Konduktor:
Miedź
Rozmiary:
6 ~ 1000 SQMM
Rdzenie:
Pojedynczy
Izolacja:
XLPE
Gwarancja:
Dwa lata
Próbki:
Oferowana bezpłatna próbka
Podkreślić:

xlpe electrical cable

,

xlpe power cable

Opis produktu

Single Phase XLPE Insulation Cable Copper Copper Tape Shield Electric Cable


Applications
This product is applicable to the fixed routing in the power distribution network or the industrial equipment with power frequency rated voltage of 1kV and below.
For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces.


Application Standards

IEC/BS/UL/GB Standards



Manufacture Standards
International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)
China: GB/T 12706, (GB/T 18380-3 for FR-type only)
Other standards such as BS,DIN and ICEA upon request





Constructions

Code

:

YJVP2

Standarts

:

TS IEC 60502, IEC 502, VDE 0271, BS 6346

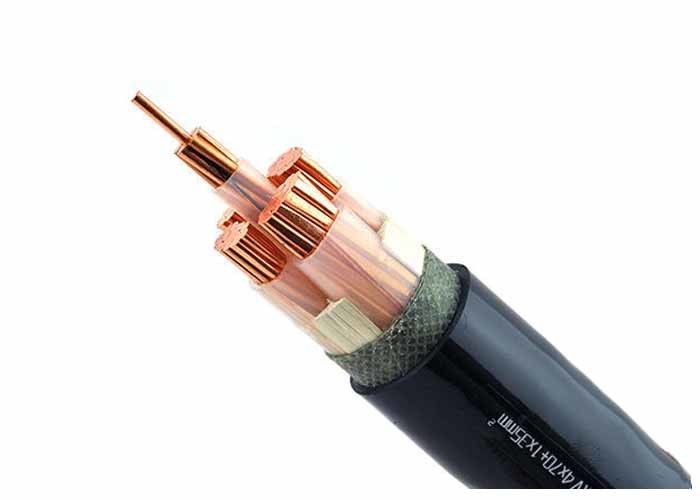

Construction

:

1- Solid, Stranded or Flexible Copper / ALuminum Conductor





2- XLPE insulation (cross-linked PE) or PVC





3- Copper tape shield





4- PVC outer sheath, or PE, LSOH

Application

:

Preferably for installation indoors, in cable ducts and in industrial plants or





switching stations, underground installation with additional protection where





mechanical damage is unexpected.

Technical Data

:

Max. operating temperature 90 ºC





Short circuit temperature 250 ºC


Code Designation



YJ: XLPE insulation

V: PVC insulation or sheath

P2: Copper tape shield

Technical data

Rated voltage: 0.6/1kV Low Voltage
PVC Insulation: Maximum Conductor Temperature: under normal (75 ℃), emergency (130℃) or short circuit no more than 5 s (160℃) conditions.

XLPE Insulation: Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 15 x cable O.D



Certificates

ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request
 Four Core XLPE Insulated Power Cable Copper Tape Shield Electric Insulation Cable 0



PACKING AND SHIPPING



We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.




Quote Request Information

1. Material of conductor/insulation/sheath.

2. Voltage classes.

3. Cross section, Short circuit current capacity, tension strength.

4. Order Quantity





Our Services

♦ We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.

♦ We accept OEM. The cable size and material are customized.Ur own logo and

own design are welcome. We will produce according to your requirement and description;

♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.




FAQ



1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc

2. Payment: We accept T/T, L/C , just choose what you like

3. Delivery time: Generally 7~10 working days upon receipt deposit. According to the quantity.

4. MOQ: Generally our MOQ is 1000meters. samples below 20 centimeter can be provided freely.
